Chevrolet Cruze Repair Manual: Front Fog Lamp Replacement

Chevrolet Cruze Repair Manual: Front Fog Lamp Replacement

Preliminary Procedures

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting   and Jacking the Vehicle.
  2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
  3. Disconnect fog lamp bulb socket electrical connector.

Front Fog Lamp Screws (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2.5 N·m (23 lb in)

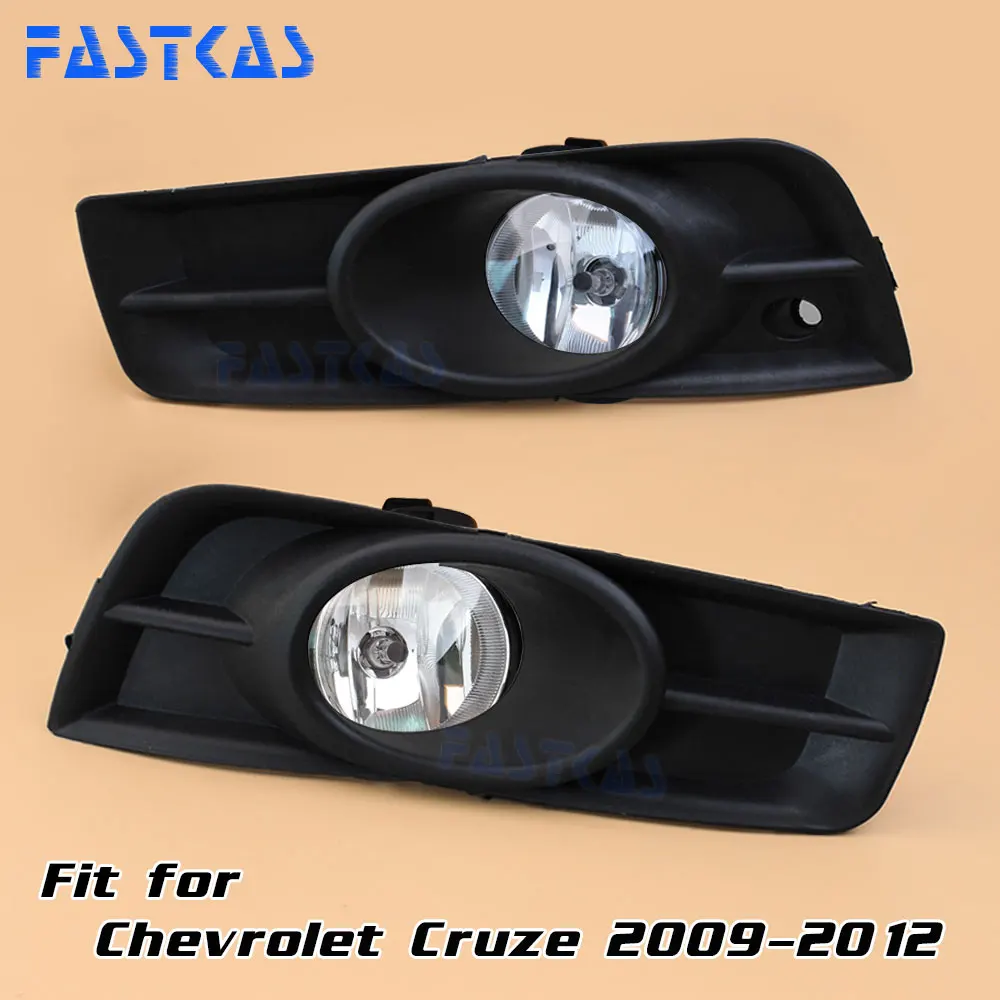

Front Fog Lamp Assembly

Procedure

  1. Remove the lamp assembly from the fog lamp bracket.
  2. Aim the fog lamp after installation. Refer to Fog Lamp Aiming.
Headlamp Aiming Procedure
Open the hood. Measure from the floor to the center of the headlamp bulb. Some headlamps have an aim dot marked on the headlamp lens. At the screen, measure from the floor and place the h ...
