Special Tools

EN-45059Torque Angle Sensor Kit

For equivalent regional tools, refer to Special Tools.

  1. Clean the sealing surfaces.
  2. Inspect for plane surface.
  • Cylinder block, cylinder head
  • Straight-edge, feeler gauge
  • Install the cylinder head gasket.
  • Install the cylinder head.

  • Caution:

    Refer to Fastener Caution.

    Caution:

    Refer to Torque-to-Yield Fastener Caution.

    Note:

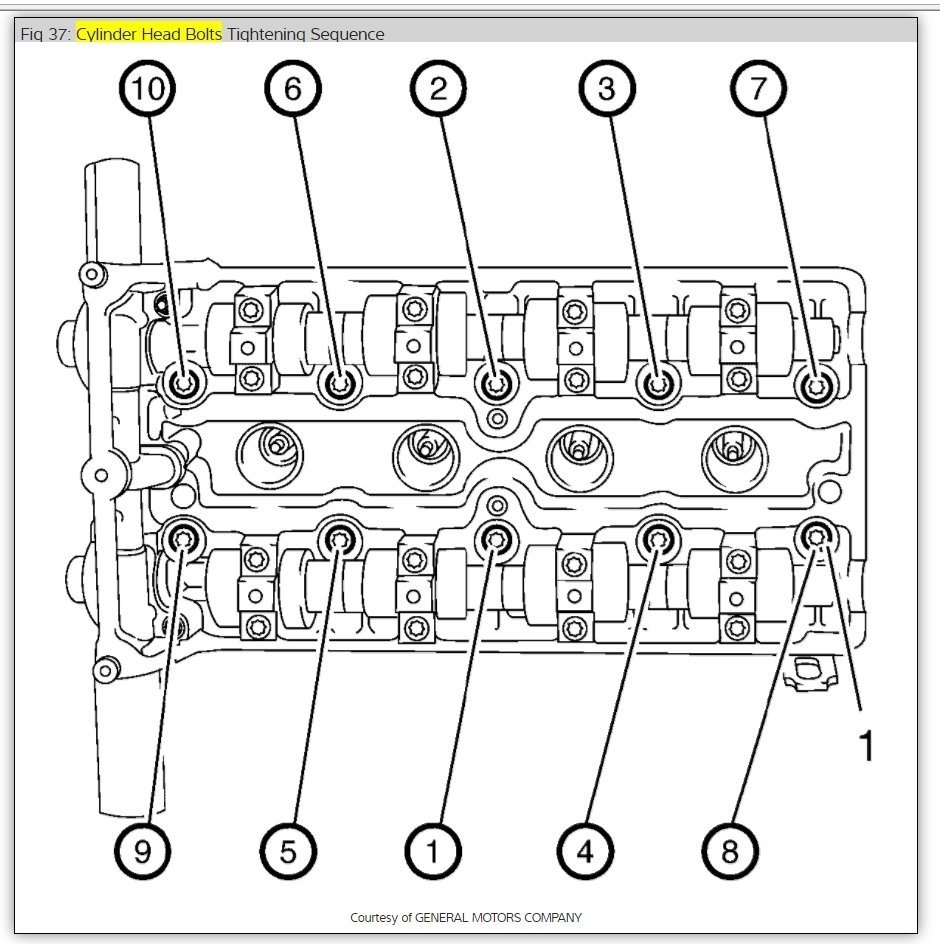

    Note the correct tightening sequence.

  • Install NEW cylinder head bolts.
  • Tighten the bolts (1) in 5 passes. Use theEN-45059sensor kit :
    • First pass to25 Y (18 lb ft)
    • Second pass to90°
    • Third pass to90°
    • Fourth pass to90°
    • Fifth pass to45°
