Mazda 3 Service Manual: Fuel Filler Lid Opener And Lever Removal/Installation

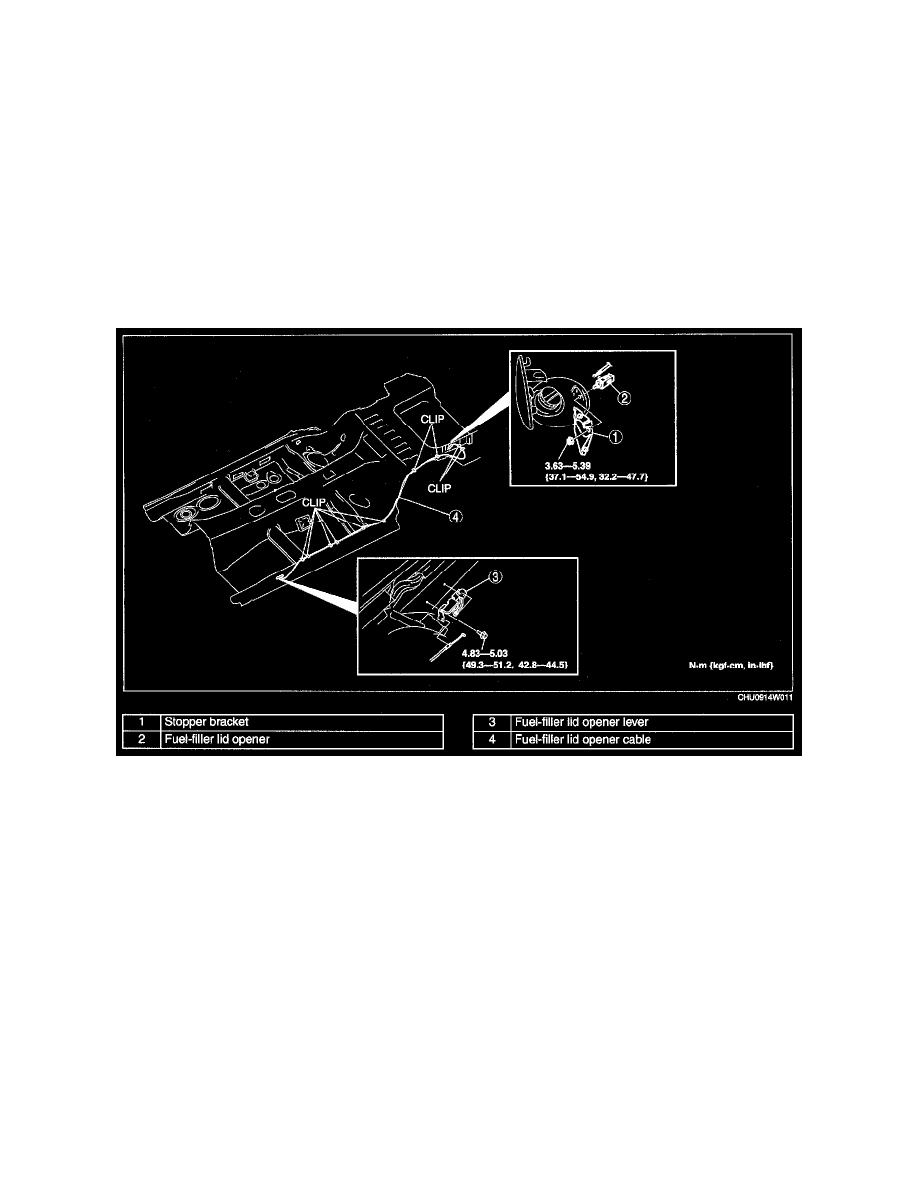

Fuel-filler Lid Opener

4SD

1. Open the fuel-filler lid.

2. Remove the following parts:

a. Trunk end trim.

b. Trunk side trim (RH).

3. Remove the nut.


4. Remove the lift spring.


5. Pull out the fuel-filler lid opener in the direction of the arrow (1).


6. Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.


7. Install in the reverse order of removal.

5HB

1. Open the fuel-filler lid.

2. Remove the following parts:

a. Rear scuff plate (RH).

b. Rear seat cushion.

c. Rear seat back.

d. Tire house trim (RH).

e. Trunk side upper trim (RH).

f. Trunk end trim.

g. Trunk side trim (RH).

3. Remove the nut.


4. Remove the lift spring.


5. Pull out the fuel-filler lid opener in the direction of the arrow (1).


6. Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.


7. Install in the reverse order of removal.

Fuel-filler Lid Opener Lever

1. Remove the front scuff plate (LH)..

2. Remove the front side trim (LH)..

3. Remove the fuel-filler lid opener bezel..

4. Partially peel back the floor covering.


5. Remove the bolts.


6. Disconnect the cable and fuel-filler lid opener lever.

7. Install in the reverse order of removal.
