Nissan Rogue Service Manual: VDC off switch

Nissan Rogue Service Manual: VDC off switch

Component Function Check

1.CHECK VDC OFF SWITCH OPERATION

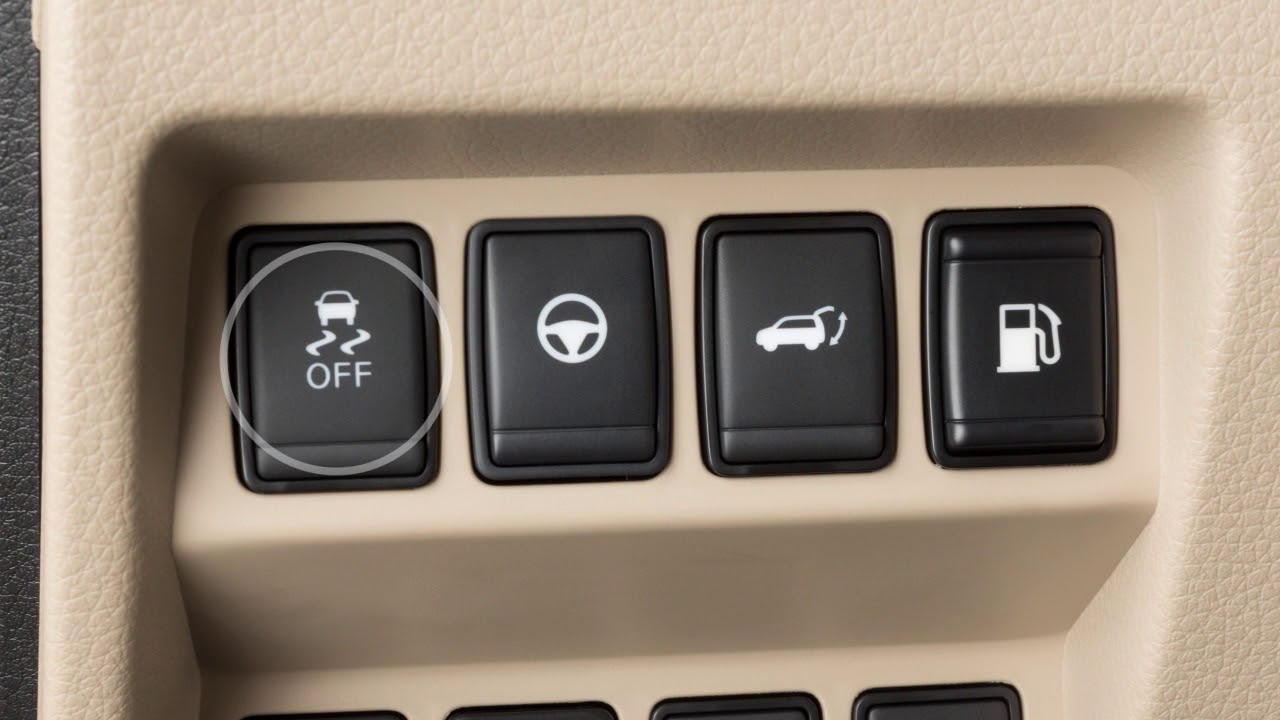

Check that VDC OFF indicator lamp in combination meter turns ON/OFF when VDC OFF switch is operated.

Is the inspection result normal? YES >> INSPECTION END

NO >> Proceed to BRC-117, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK VDC OFF SWITCH CIRCUIT

  1.  Turn the ignition switch OFF.
  2.  Disconnect ABS actuator and electric unit (control unit) harness connector.
  3.  Disconnect VDC OFF switch harness connector.
  4.  Check the continuity between ABS actuator and electric unit (control unit) harness connector and VDC OFF switch harness connector.

Check VDC off switch circuit

  1. Check the continuity between ABS actuator and electric unit (control unit) harness connector and ground.

Check VDC off switch circuit

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace error-detected parts.

2.CHECK VDC OFF SWITCH GROUND CIRCUIT

Check the continuity between VDC OFF switch harness connector and ground.

Check VDC off switch ground circuit

the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace error-detected parts.

3.CHECK VDC OFF SWITCH

Check the VDC OFF switch. Refer to BRC-118, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace the VDC OFF switch. Refer to BRC-138, "Removal and Installation".

4.CHECK VDC OFF SWITCH SIGNAL

With CONSULT

  1.  Connect ABS actuator and electric unit (control unit) harness connector.
  2.  Connect VDC OFF switch harness connector.
  3.  Select “ABS”, “DATA MONITOR” and “OFF SW” according to this order. Check the VDC OFF switch signal.

Check VDC off switch signal

Is the inspection result normal? YES >> Inspection End.

NO >> GO TO 5.

5.CHECK TERMINAL

  1.  Check the ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
  2.  Check the VDC OFF switch pin terminals for damage or loose connection with harness connector.

Is the inspection result normal? YES >> Replace the ABS actuator and electric unit (control unit). Refer to BRC-136, "Removal and Installation".

NO >> Repair or replace error-detected parts.

Component Inspection

1.CHECK VDC OFF SWITCH

  1.  Turn the ignition switch OFF.
  2.  Disconnect VDC OFF switch harness connector.
  3.  Check the continuity between terminals of VDC OFF switch connector.

Check VDC off switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace the VDC OFF switch. Refer to BRC-138, "Removal and Installation".
