Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

COMPONENTS

COMPONENTS


COMPONENTS


OVERHAUL

1. REMOVE CYLINDER BLOCK WATER DRAIN COCK SUB-ASSY

2. REMOVE WATER SEAL PLATE

3. REMOVE CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.1 PLUG

(a) Using a socket hexagon wrench 10, remove the screw plug.

4. REMOVE CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.2 PLUG

(a) Using a socket hexagon wrench 10, remove the screw plug.

5. REMOVE CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.3 PLUG

(a) Using a socket hexagon wrench 10, remove the screw plug.

6. INSPECT CONNECTING ROD THRUST CLEARANCE

INSPECT CONNECTING ROD THRUST CLEARANCE


(a) Using a dial indicator, measure the thrust clearance while moving the connecting rod back and forth.

Standard thrust clearance: 0.150 to 0.300 mm (0.0059 to 0.0118 in.) Maximum thrust clearance: 0.350 mm (0.0138 in.)

If the thrust clearance is greater than the maximum, replace the connecting rod assembly(s). If necessary, replace the crankshaft.

Connecting rod thickness: 20.80 to 20.85 mm (0.8189 to 0.8209 in.)

7. INSPECT CONNECTING ROD OIL CLEARANCE

(a) Check that the matchmarks on the connecting rod and cap are aligned to ensure correct reassembly.

(b) Remove the 2 connecting rod cap bolts.

(c) Clean the crank pin, the bearing and the connecting rod.

(d) Check the crank pin and bearing for pitting and scratches.

INSPECT CONNECTING ROD OIL CLEARANCE


(e) Lay a strip of plastigage across the crank pin.

INSPECT CONNECTING ROD OIL CLEARANCE


(f) Check that the protrusion of the connecting rod cap is facing the correct direction.

(g) Apply a light coat of engine oil to the threads of the connecting rod cap bolts.

INSPECT CONNECTING ROD OIL CLEARANCE


(h) Tighten the bolts in several steps by the specified torque.

Torque: 25 NVm (255 kgfVcm, 18 ftVlbf)

INSPECT CONNECTING ROD OIL CLEARANCE


(i) Mark the front side of each connecting cap bolt with paint.

(j) Retighten the cap bolts by 90 as shown in the illustration.

NOTICE: Do not turn the crankshaft.

(k) Remove the 2 bolts, the connecting rod cap and the lower bearing.

INSPECT CONNECTING ROD OIL CLEARANCE


(l) Measure the plastigage at its widest point.

Standard oil clearance: 0.038 to 0.066 mm (0.0015 to 0.0026 in.) Maximum oil clearance: 0.080 mm (0.0031 in.)

If the oil clearance is greater than the maximum, replace the bearings. If necessary, grind or replace the crankshaft.

(m) Completely remove the plastigage.

INSPECT CONNECTING ROD OIL CLEARANCE


HINT: If replacing the bearing, replace it with one that has the same number as the connecting rod. There are 4 sizes of standard bearings: 1, 2, 3 and 4.

Standard bearing center wall thickness:

INSPECT CONNECTING ROD OIL CLEARANCE


8. REMOVE PISTON SUB-ASSY W/CONNECTING ROD

REMOVE PISTON SUB-ASSY W/CONNECTING ROD


(a) Using a ridge reamer, remove all the carbon from the top of the cylinder.

(b) Push out the piston and the connecting rod assembly from the top of the cylinder block.

HINT:

  • Keep the bearings, the connecting rod and the cap together.
  • Arrange the piston and the connecting rod assemblies in the correct order so they can be returned to their original locations when reassembled.

9. REMOVE CONNECTING ROD BEARING

10. REMOVE PISTON RING SET

REMOVE PISTON RING SET


(a) Using a piston ring expander, remove the 2 compression rings.

(b) Remove the 2 side rails and oil ring by hand.

11. REMOVE PISTON PIN HOLE SNAP RING

REMOVE PISTON PIN HOLE SNAP RING


(a) Using a small screwdriver, pry out the 2 snap rings.

12. REMOVE W/PIN PISTON SUB-ASSY

REMOVE W/PIN PISTON SUB-ASSY


(a) Gradually heat the piston to approximately 80 C(176 F).

REMOVE W/PIN PISTON SUB-ASSY


(b) Using a plastic-faced hammer and a brass bar, lightly tap out the piston pin and remove the connecting rod.

HINT:

  • The piston and pin are a matched set.
  • Store the pistons, the pins, the rings, the connecting rods and the bearings in the correct order so that they can be returned to their original locations when reassembled.

13. INSPECT CRANKSHAFT THRUST CLEARANCE

INSPECT CRANKSHAFT THRUST CLEARANCE


(a) Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard thrust clearance: 0.04 to 0.24 mm (0.0016 to 0.0094 in.) Maximum thrust clearance: 0.30 mm (0.0118 in.)

If the thrust clearance is greater than the maximum, replace the thrust washers as a set. Check the crankshaft for wear, repair or replace if necessary.

Thrust washer thickness: 1.93 to 1.98 mm (0.0760 to 0.0780 in.)

14. INSPECT CRANKSHAFT OIL CLEARANCE

INSPECT CRANKSHAFT OIL CLEARANCE


(a) Uniformly loosen and remove the 8 main bearing cap bolts and seal washers in the sequence shown in the illustration

INSPECT CRANKSHAFT OIL CLEARANCE


(b) Uniformly loosen and remove the 16 main bearing cap bolts in the sequence shown in the illustration.

INSPECT CRANKSHAFT OIL CLEARANCE


(c) Remove the 4 main bearing caps and 4 lower bearings.

Also remove the 2 lower thrust washers, located under the No. 2 main bearing cap.

INSPECT CRANKSHAFT OIL CLEARANCE


NOTICE: Using a screwdriver, push up on the cap little by little, alternating from the right and left side until the cap is free. Take care not to damage the contact surfaces of the cap and cylinder block.

HINT:

  • Keep the lower bearing and main bearing cap together.
  • Arrange the main bearing caps and lower thrust washers in the correct order.

INSPECT CRANKSHAFT OIL CLEARANCE


(d) Lift out the crankshaft.

HINT: Keep the upper bearings together with the cylinder block.

(e) Clean each main journal and bearing.

(f) Check each main journal and bearing for pitting and scratches.

If the journal or bearing is damaged, replace the bearings. If necessary, replace the crankshaft.

INSPECT CRANKSHAFT OIL CLEARANCE


(g) Place the crankshaft on the cylinder block.

(h) Lay a strip of plastigage across each journal.

INSPECT CRANKSHAFT OIL CLEARANCE


(i) Install the 4 main bearing caps.

NOTICE: Do not turn the crankshaft.

(j) Remove the main bearing caps (see steps (a) to (c)).

INSPECT CRANKSHAFT OIL CLEARANCE


(k) Measure the plastigage at its widest point.

Standard oil clearance:

INSPECT CRANKSHAFT OIL CLEARANCE


Maximum oil clearance:

INSPECT CRANKSHAFT OIL CLEARANCE


If the oil clearance is greater than the maximum, replace the bearings. If necessary, replace the crankshaft.

INSPECT CRANKSHAFT OIL CLEARANCE


HINT: If using a bearing, replace it with one that has the same number.

If the number of the bearing cannot be determined, select the correct bearing by adding together the numbers imprinted on the cylinder block and crankshaft, then refer to the table on the next page for the appropriate bearing number. The No. 1 and No. 4 journal bearings have 5 standard bearing sizes, marked 3, 4, 5, 6 and 7 accordingly. The No. 2 and No. 3 journal bearings have 5 standard bearing sizes, marked 1, 2, 3, 4 and 5 accordingly.

No. 1 and No. 4 journal bearings

INSPECT CRANKSHAFT OIL CLEARANCE


HINT: EXAMPLE
Cylinder block imprinted number mark is 06 Crankshaft imprinted number mark is 08 6 + 8 = 14
Select the bearing marked "5"

No. 1 and No. 4 journal standard bearings selection chart

INSPECT CRANKSHAFT OIL CLEARANCE


EXAMPLE: Cylinder block "06", Crankshaft "08" = Use bearing "5"

No. 2 and No. 3 journal bearings

INSPECT CRANKSHAFT OIL CLEARANCE


HINT: EXAMPLE
Cylinder block imprinted number mark is 06 Crankshaft imprinted number mark is 08 6 + 8 = 14
Select the bearing marked "3"

No.2 and No.3 journal standard bearings selection chart

INSPECT CRANKSHAFT OIL CLEARANCE


EXAMPLE: Cylinder block "06", Crankshaft "08" = Use bearing "3"

Reference

Reference


(l) Completely remove the plastigage.

15. REMOVE CRANKSHAFT

(a) Lift the crankshaft.

(b) Remove the 4 upper main bearings and 2 upper thrust washers from the cylinder block.

HINT: Arrange the main bearing caps, bearings and thrust washers in the correct order.

16. REMOVE CRANKSHAFT THRUST WASHER SET

17. REMOVE CRANKSHAFT BEARING

18. CLEAN CYLINDER BLOCK

NOTICE: If the cylinder is washed at high temperatures, the cylinder liner sticks out beyond the cylinder block.

Always wash the cylinder block at a temperature of 45 C (113 F) or less.

19. INSPECT CYLINDER BLOCK FOR FLATNESS

 INSPECT CYLINDER BLOCK FOR FLATNESS


(a) Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head gasket for warpage.

Maximum warpage: 0.05 mm (0.0020 in.)

If the warpage is greater than the maximum, replace the cylinder block.

20. INSPECT CYLINDER BORE

INSPECT CYLINDER BORE


(a) Using a cylinder gauge, measure the cylinder bore diameter at positions A and B in the thrust and axial directions.

Specified diameter: 92.000 to 92.132 mm (3.6220 to 3.6272 in.)

If the measured diameters is greater than the maximum, replace the cylinder block.

21. INSPECT W/PIN PISTON SUB-ASSY

INSPECT W/PIN PISTON SUB-ASSY


(a) Using a micrometer, measure the diameter of the piston.

When you measure the diameter, attach the micrometer to a location where 13.0 mm (0.512 in.) above from the piston bottom and meets at the right angles to the piston pin hole.

Piston diameter: 91.953 to 91.967 mm (3.6202 to 3.6207 in.)

22. INSPECT PISTON OIL CLEARANCE

(a) Subtract the piston diameter measurement from the cylinder bore diameter measurement.

Standard oil clearance: 0.033 to 0.059 mm (0.0013 to 0.0023 in.) Maximum oil clearance: 0.130 mm (0.0051 in.)

If the oil clearance is greater than the maximum, replace all the 6 pistons. If necessary, replace the cylinder block.

23. INSPECT CONNECTING ROD SUB-ASSY

INSPECT CONNECTING ROD SUB-ASSY


(a) Using a rod aligner and feeler gauge, check the connecting rod alignment.

  1.  Check for misalignment.

Maximum misalignment: 0.05 mm (0.0020 in.) per 100 mm (3.94 in.)

If misalignment is greater than the maximum, replace the connecting rod assembly.

INSPECT CONNECTING ROD SUB-ASSY


  1. Check for twist.

Maximum twist: 0.15 mm (0.0059 in.) per 100 mm (3.94 in.)

If the twist is greater than the maximum, replace the connecting rod assembly.

24. INSPECT PISTON PIN OIL CLEARANCE

INSPECT PISTON PIN OIL CLEARANCE


(a) Using a caliper gauge, measure the inside diameter of the connecting rod bush.

Bush inside diameter: 22.005 to 22.014 mm (0.8663 to 0.8667 in.)

INSPECT PISTON PIN OIL CLEARANCE


(b) Using a micrometer, measure the piston pin diameter.

Piston pin diameter: 21.997 to 22.006 mm (0.8660 to 0.8664 in.)

(c) Subtract the piston pin diameter measurement from the bush inside diameter measurement.

Standard oil clearance: 0.005 to 0.011 mm (0.0002 to 0.0004 in.) Maximum oil clearance: 0.050 mm (0.0020 in.)

If the oil clearance is greater than the maximum, replace the bush. If necessary, replace the piston and the piston pin together.

25. REMOVE CONNECTING ROD SMALL END BUSH

REMOVE CONNECTING ROD SMALL END BUSH


(a) Using SST and a press, press out the bush.

SST 09222-30010

26. INSTALL CONNECTING ROD SMALL END BUSH

INSTALL CONNECTING ROD SMALL END BUSH


(a) Align the oil holes of a new bush and the connecting rod.

INSTALL CONNECTING ROD SMALL END BUSH


(b) Using SST and a press, press in the bush.

SST 09222-30010

INSTALL CONNECTING ROD SMALL END BUSH


(c) Using a pin hole grinder, hone the bushing to obtain the standard clearance between the bush and piston pin.

Standard oil clearance: 0.005 to 0.011 mm (0.0002 to 0.0004 in.)

INSTALL CONNECTING ROD SMALL END BUSH


(d) Check that the piston pin fits at normal room temperature.

Coat the piston pin with engine oil, and push it into the connecting rod with your thumb.

27. INSPECT RING GROOVE CLEARANCE

INSPECT RING GROOVE CLEARANCE


(a) Using a feeler gauge, measure the clearance between new piston ring and the wall of the ring groove.

Ring groove clearance:

INSPECT RING GROOVE CLEARANCE


If the clearance is not as specified, replace the piston.

28. INSPECT PISTON RING END GAP

INSPECT PISTON RING END GAP


(a) Using a piston, push the piston ring a little beyond the bottom of the ring travel, 110 mm (4.33 in.) from the top of the cylinder block.

INSPECT PISTON RING END GAP


(b) Using a feeler gauge, measure the end gap.

Standard end gap:

INSPECT PISTON RING END GAP


Maximum end gap:

INSPECT PISTON RING END GAP


If the end gap is greater than the maximum, replace the piston ring.

If the end gap is greater than the maximum even with a new piston ring, replace the cylinder block.

29. INSPECT CONNECTING ROD BOLT

INSPECT CONNECTING ROD BOLT


(a) Using a vernier caliper, measure the tension portion diameter of the bolt.

Standard diameter: 7.20 to 7.30 mm (0.2830 to 0.2870 in.) Minimum diameter: 7.0 mm (0.2760 in.)

If the diameter is less than the minimum, replace the bolt.

30. INSPECT CRANKSHAFT BEARING CAP SET BOLT

INSPECT CRANKSHAFT BEARING CAP SET BOLT


(a) Using a vernier caliper, measure the tension portion diameter of the bolt.

Standard diameter: 7.50 to 7.60 mm (0.2950 to 0.2990 in.) Minimum diameter: 7.20 mm (0.2830 in.)

If the diameter is less than the minimum, replace the bolt.

31. INSPECT CRANKSHAFT

INSPECT CRANKSHAFT


(a) Using a dial indicator and V-blocks, measure the runout as shown in the illustration.

Maximum circle runout: 0.06 mm (0.0024 in.)

If the circle runout is greater than the maximum, replace the crankshaft

INSPECT CRANKSHAFT


(b) Using a micrometer, measure the diameter of each main journal.

Diameter: 60.988 to 61.000 mm (2.4011 to 2.4016 in.) If the diameter is not as specified, check the oil clearance (see step 7).

If necessary, replace the crankshaft.

(c) Check each main journal for taper and out-of-round, as shown in the illustration.

Maximum taper and out-of-round: 0.02 mm (0.0008 in.)

If the taper and out-of-round is greater than the maximum, replace the crankshaft.

INSPECT CRANKSHAFT


(d) Using a micrometer, measure the diameter of each crank pin.

Diameter: 52.992 to 53.000 mm (2.0863 to 2.0866 in.)

If the diameter is not as specified, check the oil clearance (see step 7).

(e) Check each crank pin for taper and out-of-round, as shown in the illustration.

Maximum taper and out-of-round: 0.02 mm (0.0008 in.)

If the taper and out-of-round is greater than the maximum, replace the crankshaft.

32. INSTALL STUD BOLT

INSTALL STUD BOLT


33. INSTALL STRAIGHT PIN

INSTALL STRAIGHT PIN


34. INSTALL RING PIN

INSTALL RING PIN


35. INSTALL PISTON PIN HOLE SNAP RING

 INSTALL PISTON PIN HOLE SNAP RING


(a) Using a small screwdriver, install a new snap ring at one end of the piston pin hole.

HINT: Be sure that the end gap of the snap ring is not aligned with the pin hole cutout portion of the piston.

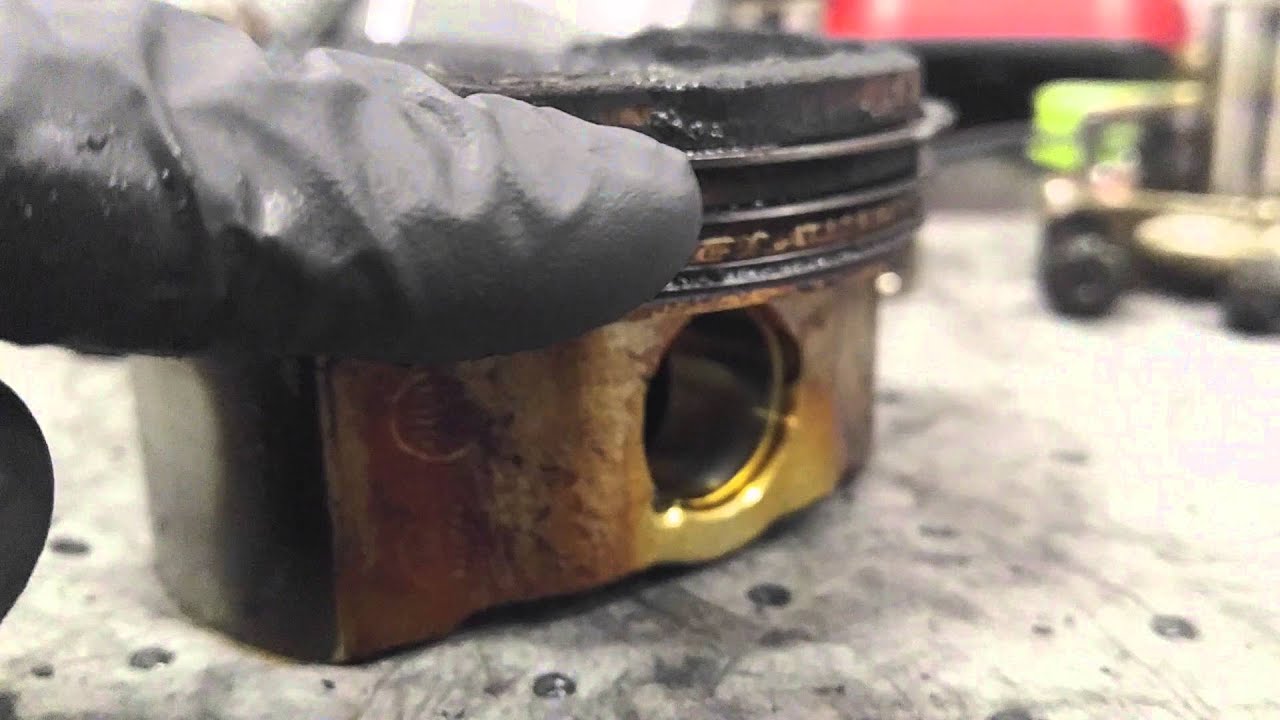

36. INSTALL W/PIN PISTON SUB-ASSY

INSTALL W/PIN PISTON SUB-ASSY


(a) Gradually heat the piston to about 80 C (176 F).

INSTALL W/PIN PISTON SUB-ASSY


(b) Coat the piston pin with engine oil.

(c) Align the front marks of the piston and connecting rod, and push in the piston pin with your thumb until the pin contacts the snap ring.

37. INSTALL PISTON PIN HOLE SNAP RING

INSTALL PISTON PIN HOLE SNAP RING


(a) Using a small screwdriver, install a new snap ring on the other end of the piston pin hole.

HINT: Be sure that the end of gap of the snap ring is not aligned with the pin hole cutout portion of the piston.

38. INSTALL PISTON RING SET

 INSTALL PISTON RING SET


(a) Install the oil ring expander and the 2 side rails by hand.

(b) Using a piston ring expander, install the 2 compression rings.

HINT: The compression ring No. 2 is installed with code mark "2A" faced upward, as shown in the illustration.

 INSTALL PISTON RING SET


(c) Position the piston rings so that the ring ends are arranged, as shown in the illustration.

NOTICE: Do not align the ring ends.

39. INSTALL CONNECTING ROD BEARING

INSTALL CONNECTING ROD BEARING


(a) Align the key of the bearing with the keyway of the connecting rod or connecting cap.

NOTICE: Clean the backside of the bearing and the bearing surface of the connecting rod. The surface should be free of dust and oils.

40. INSTALL CRANKSHAFT BEARING

INSTALL CRANKSHAFT BEARING


HINT: Main bearings come in width of 22.4 mm (0.882 in.) and 19.0 mm (0.748 in.). Install the 22.4mm (0.882 in.) bearings in the No. 1 and No. 4 cylinder block journal positions with the main bearing cap. Install the 19.0 mm (0.748 in.) bearings in the No.

2 and No. 3 positions.

INSTALL CRANKSHAFT BEARING


(a) Align the key of the bearing with the keyway of the cylinder block, and push in the 4 upper bearings.

NOTICE: Do not apply engine oil to the bearing and its contact surface.

INSTALL CRANKSHAFT BEARING


(b) Align the key of the bearing with the keyway of the main bearing cap, and push in the 4 lower bearings.

NOTICE: Do not apply engine oil to the bearing and its contact surface.

HINT: A number is marked on each main bearing cap to indicate the installation position

41. INSTALL CRANKSHAFT THRUST WASHER SET

INSTALL CRANKSHAFT THRUST WASHER SET


(a) Install the 2 thrust washers under the No. 2 journal position of the cylinder block with the oil grooves facing outward.

INSTALL CRANKSHAFT THRUST WASHER SET


(b) Install the 2 thrust washers on the No. 2 bearing cap with the grooves facing outward.

42. INSTALL CRANKSHAFT

(a) Apply engine oil to the upper bearing and install the crankshaft on the cylinder block.

(b) Examine the front marks and numbers. Install the bearing caps on the cylinder block.

INSTALL CRANKSHAFT


(c) Apply a light coat of engine oil on the threads of the bearing cap bolts.

(d) Temporarily install the 8 main bearing cap bolts to the inside positions.

INSTALL CRANKSHAFT


(e) Install the main bearing cap by hand using the inner bolt as a guide. Stop the main bearing cap about 6 mm (0.23 in.) away from contacting with the block.

INSTALL CRANKSHAFT


(f) Using a plastic-faced hammer, lightly tap the bearing cap to ensure a proper fit.

(g) Apply a light coat of engine oil on the threads of the main bearing cap bolts.

INSTALL CRANKSHAFT


(h) Uniformly install and tighten the 16 main bearing cap bolts in the sequence shown in the illustration.

Torque: 22 NVm (224 kgfVcm, 16 ftVlbf)

INSTALL CRANKSHAFT


(i) Mark the front side of the bearing cap bolts with paint.

(j) Retighten the bearing cap bolts by 90 in the same sequence as step (h).

(k) Check that each painted mark is now at a 90 angle to the front.

(l) Check that the crankshaft turns smoothly.

INSTALL CRANKSHAFT


(m) Uniformly install and tighten the 8 main bearing cap bolts in the sequence shown in the illustration.

Torque: 27 NVm (275 kgfVcm, 20 ftVlbf)

HINT: Use the short bolt for the marked positions (arrow).

43. INSTALL PISTON SUB-ASSY W/CONNECTING ROD

INSTALL PISTON SUB-ASSY W/CONNECTING ROD


(a) Apply engine oil to the cylinder walls, the pistons, and the surfaces of connecting rod bearings.

(b) Check the position of the piston ring ends.

(c) Using a piston ring compressor, push the piston that numbered correctly and connecting rod assemblies into each cylinder with the front mark of the piston facing forward.

NOTICE: Match the numbered connecting rod cap with the connecting rod.

INSTALL PISTON SUB-ASSY W/CONNECTING ROD


(d) Check that the protrusion of the connecting rod cap is facing the correct direction.

(e) Apply a light coat of engine oil on the threads of the connecting rod cap bolts.

INSTALL PISTON SUB-ASSY W/CONNECTING ROD


(f) Tighten the bolts in several steps by the specified torque.

Torque: 25 NVm (255 kgfVcm, 18 ftVlbf)

INSTALL PISTON SUB-ASSY W/CONNECTING ROD


(g) Mark the front side of each connecting cap bolt with paint.

(h) Retighten the cap bolts by 90 as shown in the illustration.

(i) Check that the crankshaft turns smoothly.

44. INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.1 PLUG

INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.1 PLUG


(a) Using a socket hexagon wrench 10, install a new gasket and the screw plug.

Torque: 30 NVm (306 kgfVcm, 22 ftVlbf)

45. INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.2 PLUG

INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.2 PLUG


(a) Using a socket hexagon wrench 10, install a new gasket and the screw plug.

Torque: 30 NVm (306 kgfVcm, 22 ftVlbf)

46. INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.3 PLUG

INSTALL CYLINDER BLOCK W/HEAD STRAIGHT SCREW NO.3 PLUG


(a) Using a socket hexagon wrench 10, install a new gasket and the screw plug.

Torque: 50 NVm (510 kgfVcm, 37 ftVlbf)

47. INSTALL WATER SEAL PLATE

INSTALL WATER SEAL PLATE


(a) Remove any old seal packing from the contact surface.

(b) Apply a continuous bead of seal packing (seal width: 3 to 5 mm (0.12 to 0.20 in.)), as shown in the illustration.

Seal packing: Part No. 08826-00100 or equivalent

NOTICE:

  • Remove any oil from the contact surface.
  • Install the seal plate within 3 minutes after applying seal packing.
  • Do not expose the seal to engine oil for at least 2 hours after installing.

(c) Install the seal plate with the 2 nuts.

Torque: 18 NVm (184 kgfVcm, 13 ftVlbf)

48. INSTALL CYLINDER BLOCK WATER DRAIN COCK SUB-ASSY

(a) Apply adhesive to 2 or 3 threads of the drain cock end.

Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

INSTALL CYLINDER BLOCK WATER DRAIN COCK SUB-ASSY


(b) After applying the specified torque, rotate the drain cock clockwise, as shown in the illustration.

Torque: 39 NVm (398 kgfVcm, 29 ftVlbf)

NOTICE: Install the drain cock within 3 minutes after applying adhesive.

Do not expose the seal to coolant for at least 1 hour after installing.

Do not rotate the drain cock more than 1 revolution (360 ) after tightening the drain cock with the specified torque.

Do not loosen the drain cock after setting it correctly.

Related news

  • Air inlet selection button
  • Toyota Highlander Owners Manual: Before refueling the vehicle
  • Nissan Maxima: NISSAN Intelligent Key Operation
  • Nissan Sentra Service Manual: Side window glass
  • Buick LaCrosse: Finish Damage

  • Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)

    Toyota Highlander Service Manual: Cylinder block ASSY (3MZ-FE)
